HDMI to Fiber Converter &RS485/RS232/Audio for Advertising,Up to 1080P&60Hz,Single Fiber Mode,20Km
Overview:
H-HDMI-1V1D1A-T/RL Optical transmitter and receiver adopts the uncompressed digital HD video and high-speed digital optical fiber transmission technology advanced, It can transfer signal source(computer signal source,VGA signal source high digital DVD/DVR and various resolution HDMI signal…) to long distance terminal easily,with strong anti-interferance performance,ensure the signal completed and stable
Specifications:
| Video | I/O connector | VGA/DVI/HDMI |
| HDMI version | HDMI1.1 1.2 1.3 |
| HDCP | HDCP1.2 |
| HDMI resolution | 1080p/1080i/720p/720i/576p/576i/480p/480i |
| Video color format | 24bit/deep color 30bit/deep color 36bit |
| Audio format | DTS/HD/Dolby-tureHD/LPCM7.1/DTS/Dolby-AC3/DSD |
| TMDS | 0.5-1.5Vp-p(TTL) |
| DDC | 5Vp-p(TTL) |
| Input cable length | ≤20m AWG26 HDMI 1.3 standard cable |
| Output cable length | ≤20m AWG26 HDMI 1.3 standard cable |
| Audio | Connector | USB-to-3.5mm audio Jack |
| Optical | Connector | SM/MM SC/FC type |
| Wave length | 850nm/1310nm/1550nm |
| Physical | Size (L× W ×H) | Sender : 164mm*115mm*26mm
Receiver: 164mm*123mm*26mm |
| Case | metal |
| Color | Black |
| N.W. | 0.75Kg |
| Power | Voltage | 5V DC |
| Power consumption | 15W |
| Environment | Working temperature | -15°C-55°C |
| Storage temperature | -40-80°C |
| Humidity | 0-95% (non-condensing) |
Each LED indicator lamp:
| Indicator Light | HDMI Transmitter | HDMI Receiver |
| VIDEO | On | Video signal on |
| Off | Video signal off |
| LOCK | On | Fixed video signal |
| Off | Not fixed video signal |
| RUN | On | Device works smoothly |
| Off | Device not works smoothly |
| POWER | On | Power on |
| Off | Power off |

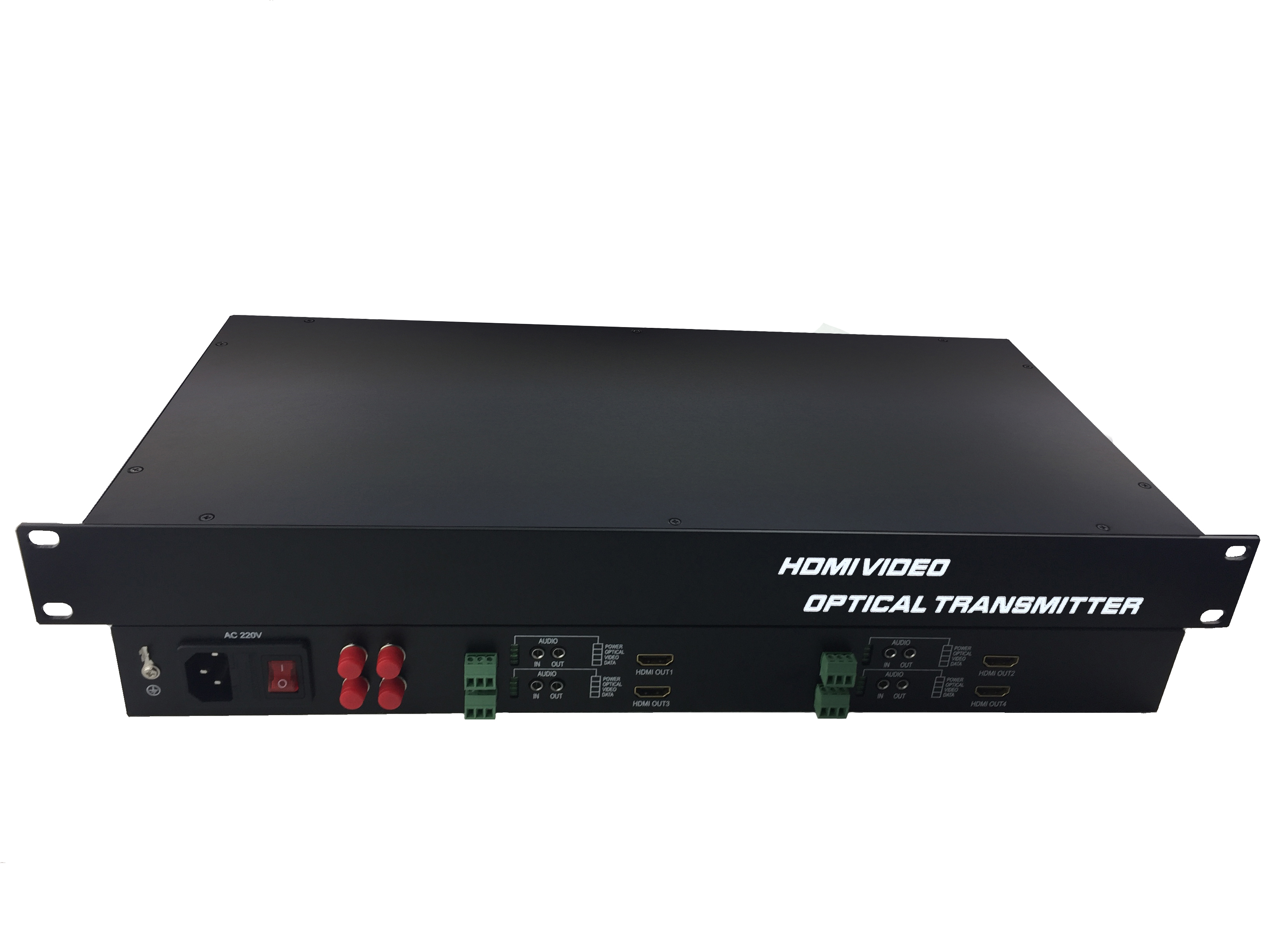

Photoes Show
Main Features:
1, max fiber transmission distances can reach up to 20km (multi-mode)
2, support max 1920*1080@60Hz resolution
3, support RS232,VGA/HDMI/DVI,PS2 keyboard and mouse,audio,MIC interface
4, 1 channel fiber optic output, compatible with any system, plug and play
5, support sampling frequency, phase, image horizontal and vertical adjustable
6, signal input indication

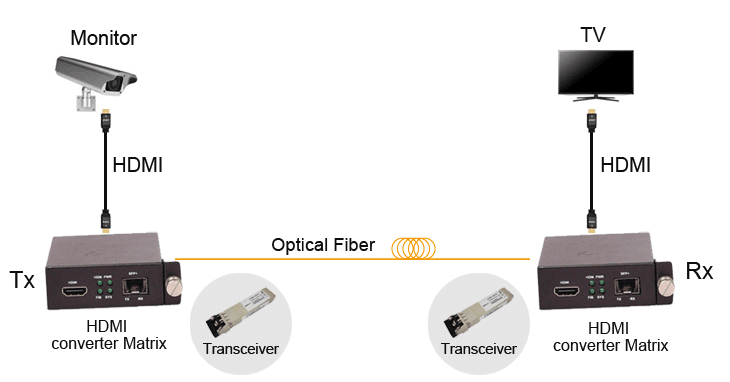

Applications:
