Digital Fiber Optic CCTV Video Converter with or without Reverse Data and Audio,1RS485 Return Data to Fiber SM 20km
Overview:
The 2 Channel Video + Audio Series products adopt the most advanced international technology of digital video and optical fiber transmission, performing synchronous, undistorted, uncompressed and high quality signal transmission over all kinds of optical fiber.
This Fiber Optical Transmitter & Receiver can be easily used in the normal operation by virtue of LED indication of working status, and without any electric or optical regulation on site. It can be installed independently or installed in 2U/4U rack.
Feature:
-
1) High definition, Lossless non-compression real time transmission
2) Auto recognition of input audio
3) UPnP, easy installation
4) Constant input optical power, and large dynamic range , no electrical or optical adjustments required .
5) Industry-grade of operating temperature from -30℃to 75℃
6) Stand-alone type or card-type installed in 19’’ 4U rack-mount chassis.
7) Optical interface: FC,ST, SC (optional)
Product parameters
| Feature | Description |
| Optical | Fiber Type | Single mode fiber |
| Fiber Connector | FC |
| Distance | 0km~120km |
| Wavelength | Transmitter |
| T1310nm, R1550nm. |
| Receiver |
| T1550nm,R1310nm. |
| HDCVI(Transmitting) | Input level | >500mVp-p |
| self-adaptionly cable equilibrium | 1080p:75-5 |
| coaxial cable,300m |
| 720p:75-5 coaxial cable,500m |
| Input/Output Impedance | 75 Ω |
| Physical Interface | BNC |
| HDCVI(Receiving) | Output level | 1Vp-p |
| Input/Output Impedance | 75Ω |
| Physical Interface | BNC |
| Data | Transmission Media | Coaxial cable |
| Baud Rate | 1200~9600bit/s |
| Bit Error Rate | less than 10 |
| Operation Mode | Half-Duplex |
| Indicators | LOS, PWR, DATA, VIDEO |
| Mean time between failures(MTBF) | |
| >100 000 hours |
| General | EPS | DC5V |
| Power Consumption | less than 5W |

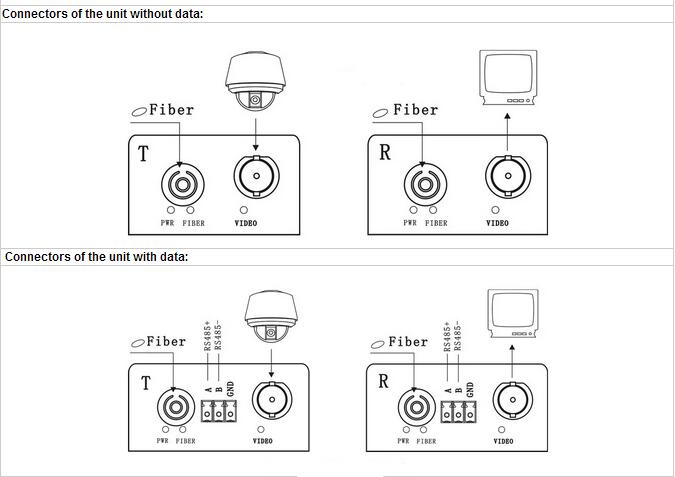

Application:
Contact Person : Lisa Xiao
Ho-link Technology Co., Limited
Add: 5 Floor A3,Xuxingda Industrial Zone,Zhoushi Rd,Shiyan
Town,BaoAn,Shenzhen,Guangdong,China
Tel: 0086-755-26407582-816 Fax: 0086-755-26403278
Mobile/WebChat/WhatsApp: 0086-15118060653
Email: lisa@holinktech.com Skype: lisaxiao03
Shipping and packaing
Package:neutral /standard/customized packing
Shipment :DHL /TNT /EMS etc.(enable the fastest delivery to your place)
Company Profile
Ho-link Technology Co., Limited is a leading manufacturer of fiber optic transmission products in China. We manufacture full range fiber optic transmission products , from Media converter, Video converter, to Optical transceiver and POE switch. Besides, we provide OEM/ODM service for many famous companies in Telecom industry all over the world.
Every month, we can turn out 10,0000 units of above products. Before production, our raw materials are checked again to make sure they are compliant with RoHS Directives. And all our output is CE and FCC-marked, finding good markets in many countries and regions including United, Kingdom,
Spain,Italy,Poland,Turkey,US,Canada,Brazil,Australia,Indonesia,Singapore,Malaysia,Vietnam and India.
Welcome to source high quality products at competitive prices from us.
