4channel HD TVI CVI AHD Fiber video converter with one return data , 60km Digital Video receiver

Name: 4channel HD TVI CVI AHD Fiber video converter with one return data 60km Digital Video receiver
Brand: Ho-Link
Price: 1 USD

China 4channel HD TVI CVI AHD Fiber video converter with one return data , 60km Digital Video receiver wholesale

Brand Name : Ho-Link

Model Number : H-TVI-T/RF

Certification : CE/ROHS/FCC/SGS

Place of Origin : China

MOQ : 50pcs

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 3,000pcs per month

Delivery Time : 1-3 working days after received your payment

Packaging Details : Packed in carton firstly,and then reinforced with wooden case for outer packing

Number of Channels : 1

Fiber Type : Single mode fiber

Fiber Connector : FC or ST or SC

Distance : 10km~80km (Optional)

Input level : >500mVp-p

self-adaption cable equilibrium : 1080p:75-5 coaxial cable,300m 720p:75-5 coaxial cable,500m

Input/Output Impedance : 75 Ω

Physical Interface : 1 channels BNC connector

Wavelength : Transmitter:T1310nm, R1550nm Receiver:T1550nm,R1310nm

EPS : DC5V

Contact Now

4ch 1080P HD TVI Fiber video converter with one return data to fiber converter, reach 60km on SMF or MMF

HDTVI to fiber converters adopt the advanced uncompressed HDTVI composite video and high velocity digital optical transmission technologies which convert the HDTVI composite signals to optical signals to achieve long distance(as far as 20Km) transmission through fibers.

Optical transmitter and receiver adopts the uncompressed digital HD video and high-speed digital optical fiber transmission technology advanced, It can transfer signal source(computer signal source,VGA signal source, high digital DVD/DVR and various resolution HDMI signal…) to long distance terminal easily, with local VGA loop through, independent analog audio, reverse 232 serial port, with,with strong anti-interference performance, ensure the signal completed and stable

Features

Non-compression coding technology
Automatically identify formats of input videos.
Support transmission of HDTVI Video signal and controlling PTZ data RS485 simultaneously though fiber optical cable
DC 5V2A power supply
Support 720p/50, 720p/60, 1080p/25, 1080p/30 videos etc.
Through LED indicators to inform its functional mode
Industrial wide range of operational temperature
Plug and play, simple installation.

Technical Indexes

Fiber	FC, Single Mode Single Fiber
Transmition Distance	0-20km
Wavelength	Transmitter: 1310nm(Tx)/1550nm(Rx)
Wavelength	Receiver: 1550nm(Tx)/1310nm(Rx)
Transmitter Input Level	>500mVp-p
Receiver Output Level	1Vp-p
Self-adaption cable equilibrium	1080p: 75-5 coaxial cable, 300m 720p: 75-5 coaxial cable, 500m
Transmitter Input Return Loss	>15dB
Input/Output Impedance	75Ω
Video Physical Interface	BNC
Video Channel	4-Ch
Video bandwidth	50MHz
Sampling Bandwidth	10 bit
RS485	1-Ch Backward RS485 (Optional)
Indicators	OPT, PWR, DATA, VIDEO
Power	DC 5V2A
Power Consumption	≤7W
Operation Humidity	10%~90%
Operation Temperature	-30°C~75°C

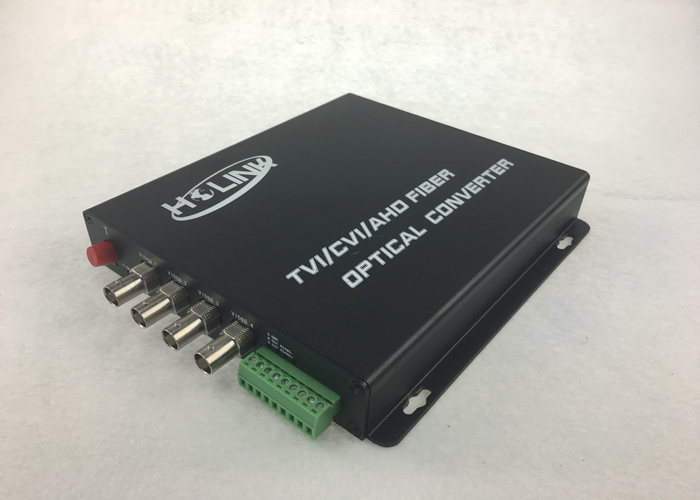

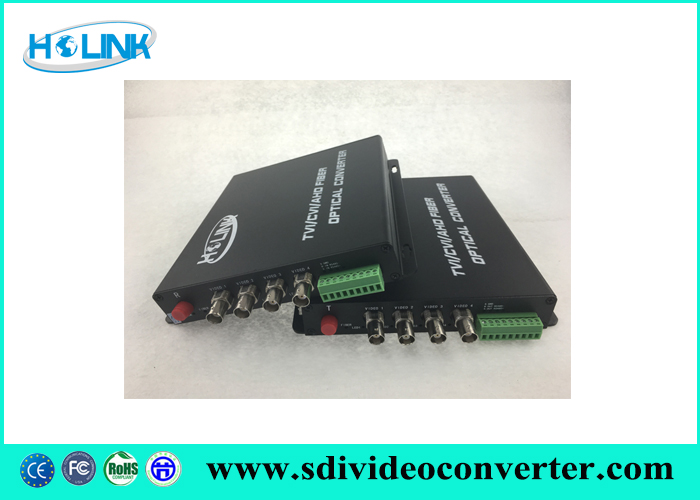

Photo Display

4channel HD TVI CVI AHD Fiber video converter with one return data , 60km Digital Video receiver

Competitive Advantage:

Ho-Link HDTVI Converters adopt the advanced uncompressed HD composite video and

high velocity digital optical transmission technologies which convert the HDTVI composite signals to optical signals to achieve long distance(as far as 80Km) transmission through fibers.

Company Photo

4channel HD TVI CVI AHD Fiber video converter with one return data , 60km Digital Video receiver

HDTVI TO Fiber Converter System connection diagram
